VCS-8 8-zone call station
v-series-keyvisual_res_1280x720
VCS-8

EVERY ZONE. ONE BUTTON.

An 8-zone call station for clear, organized paging on the V Series platform.
Loading

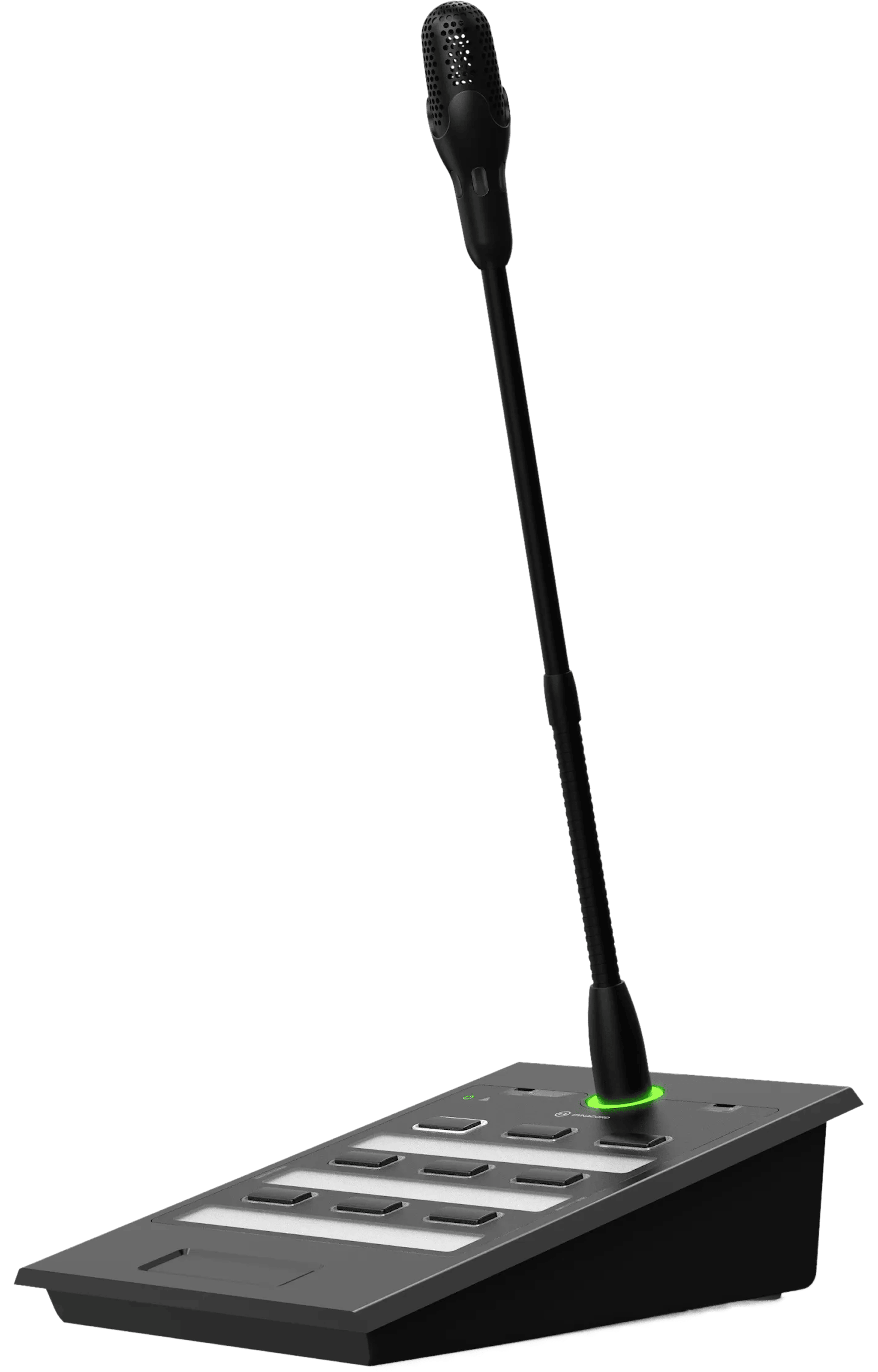

VCS-8 8-zone call station

An 8-zone paging and control station for the VZX-8, with 9 programmable buttons, a gooseneck microphone, and flexible system actions over RJ45.
  • Mounting Type
  • Microphone Type
  • Configuration
  • Operating Voltage / Power
  • Daisy Chain Capable / Max

Make the announcement and trust it lands. The VCS-8 puts nine programmable buttons and a gooseneck mic in front of the operator, so paging a zone, a group, or the whole building takes one press. Priority, mutual exclusion, and busy indication keep messages from colliding when more than one station is live. Daisy-chain up to eight, and the system grows with the site. A cast-aluminum base keeps it planted through years of daily use.

Key features

One press per zone
nine programmable buttons page individuals, groups, or everything.
Messages don't collide
priority, mutual exclusion, and busy indication manage the traffic.
Grows with the building
daisy-chain up to eight stations on the V Series platform.
Clear every time
gooseneck mic tuned for intelligible announcements and paging.
Built to stay put
heavy-duty cast-aluminum base for stability and a long service life.

VCS-8

Features

Page any zone and control more from one station. The VCS-8 is an 8-zone paging and control station for the VZX-8 Zone Audio Processor, with a high-quality gooseneck microphone, 9 freely programmable buttons, and a large push-to-talk button. The programmable buttons can select individual zones or all zones for paging, or trigger system actions such as level adjustments, message playback, mute functions, GPIO control, and more. The push-to-talk button initiates the page and can also trigger additional actions at the same time, such as muting selected inputs or sending a GPIO command. Advanced paging management—including configurable priorities, mutual exclusion, busy indication, selectable chimes, and support for up to four simultaneous pages to different zones—helps keep communication organized across larger systems. The VCS-8 receives power and communication from the VZX-8 accessory bus over RJ45, supports daisy-chaining of up to 8 call stations, and features illuminated status indicators and a durable cast-aluminum base for stable daily operation.
  • Page and control by zone — 9 programmable buttons can select individual zones or all zones for paging, or trigger functions such as level adjustments, message playback, mute, GPIO control, and more.
  • Expand multi-zone paging — daisy-chain up to 8 VCS-8 stations per VZX-8 over RJ45.
  • See status at a glance — LED indicators around each button and a light ring show busy and pre-chime status.
  • Power and connect with one cable — 48 VDC power and communication come from the VZX-8 accessory bus, with no separate power supply required.
  • Built for daily use — a high-quality gooseneck microphone and heavy-duty cast-aluminum base provide clear operation and lasting stability.

Specifications

Overview & Features

Configuration

9 programmable buttons plus push-to-talk

Acoustic Performance

Frequency Response

100 Hz - 14 kHz

Signal-to-Noise Ratio

68 dB (A-weighted)

Power & Amplification

Operating Voltage / Power

48 VDC, powered via VZX-8 accessory bus

Connectivity & I/O

Connectivity

2x RJ45 (In/Out, daisy-chain)

Daisy Chain Capable / Max

Yes / up to 8 per VZX-8

Dynacord_VSeriesZoneAudioPlatform_Family

PART OF THE V SERIES SYSTEM.

The VCS-8 pages through the VZX-8 zone processor: up to 8 stations per system, powered over one RJ45 cable.
