SR20TGX Amplifier system rack, 3x TGX20
SR20TGX Amplifier system rack, 3x TGX20
A turn-key touring amplifier rack housing three TGX20 amplifiers with power distribution, a pre-configured OMNEO/Dante network, and a rolling dolly.
Features

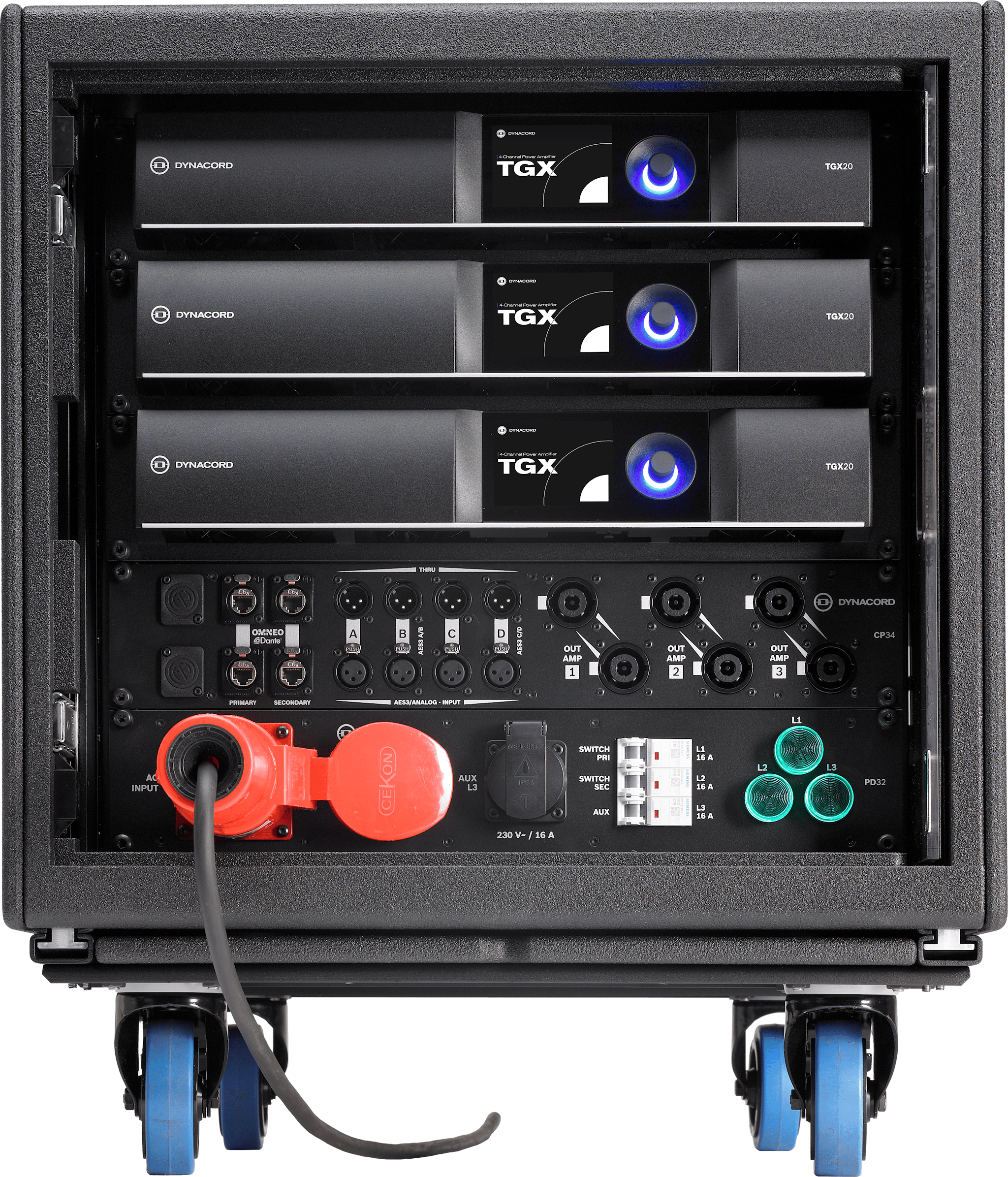

Roll in a finished amp rack. The SR20TGX packs three TGX20 DSP amplifiers into a 19-inch touring rack with a CP34 connector panel, regional power distribution (CEE 32 A in EU, NEMA L21-30 in US), and two pre-configured managed Layer-3 Gigabit switches for a redundant OMNEO/Dante network. A detachable dolly board and connector rails move it, and it ships with a 2U blank and full documentation. Touring PA, festivals, and rental companies that want the main amps wired, networked, and ready to patch.
- Three amps, wired: 3x TGX20 DSP power amplifiers in one 19-inch touring rack.
- Power sorted: regional distribution, CEE 32 A 3-phase in EU, NEMA L21-30 in US.
- Networked out of the box: two pre-configured managed L3 Gigabit switches for OMNEO/Dante.
- Clean patching: CP34 connector panel for audio and network.
- Moves as one: detachable dolly board and connector rails, flyable.
Specifications
Overview & Features
- Configuration
Turn-key 19 in rack: 3x TGX20 + power distribution + network
Power & Amplification
- Total Output Power*
60000 W
Connectivity & I/O
- Connectivity
XLR, NL4, EtherCon
- Network Protocol
Dante, AES70/OCA
Mounting & Rigging
- Mounting Type
19 in system rack with detachable dolly
Dimensions & Weight
- Net weight
112.8 kg (248.7 lb) w/o dolly; 123.8 kg (272.9 lb) with dolly
