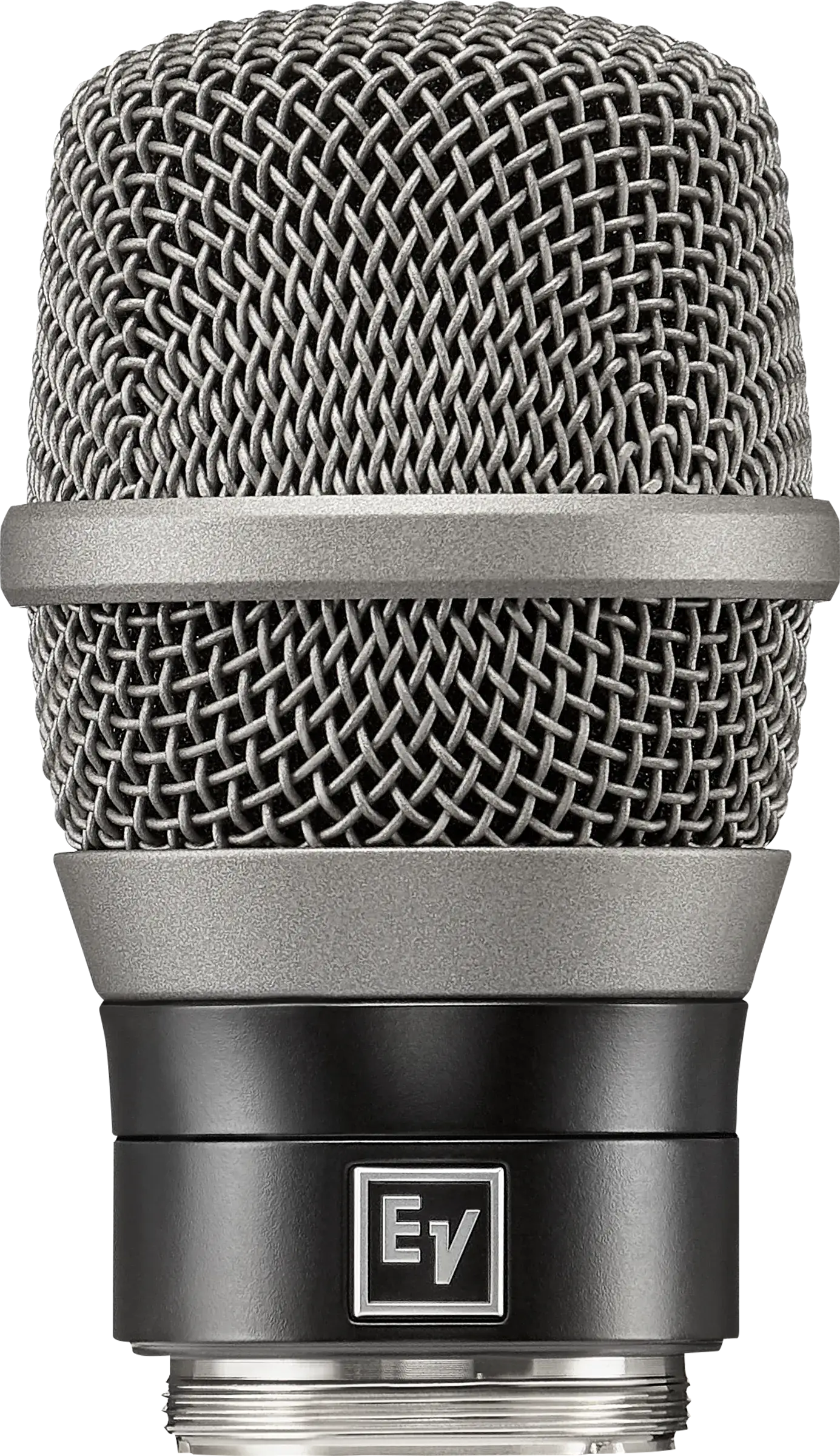

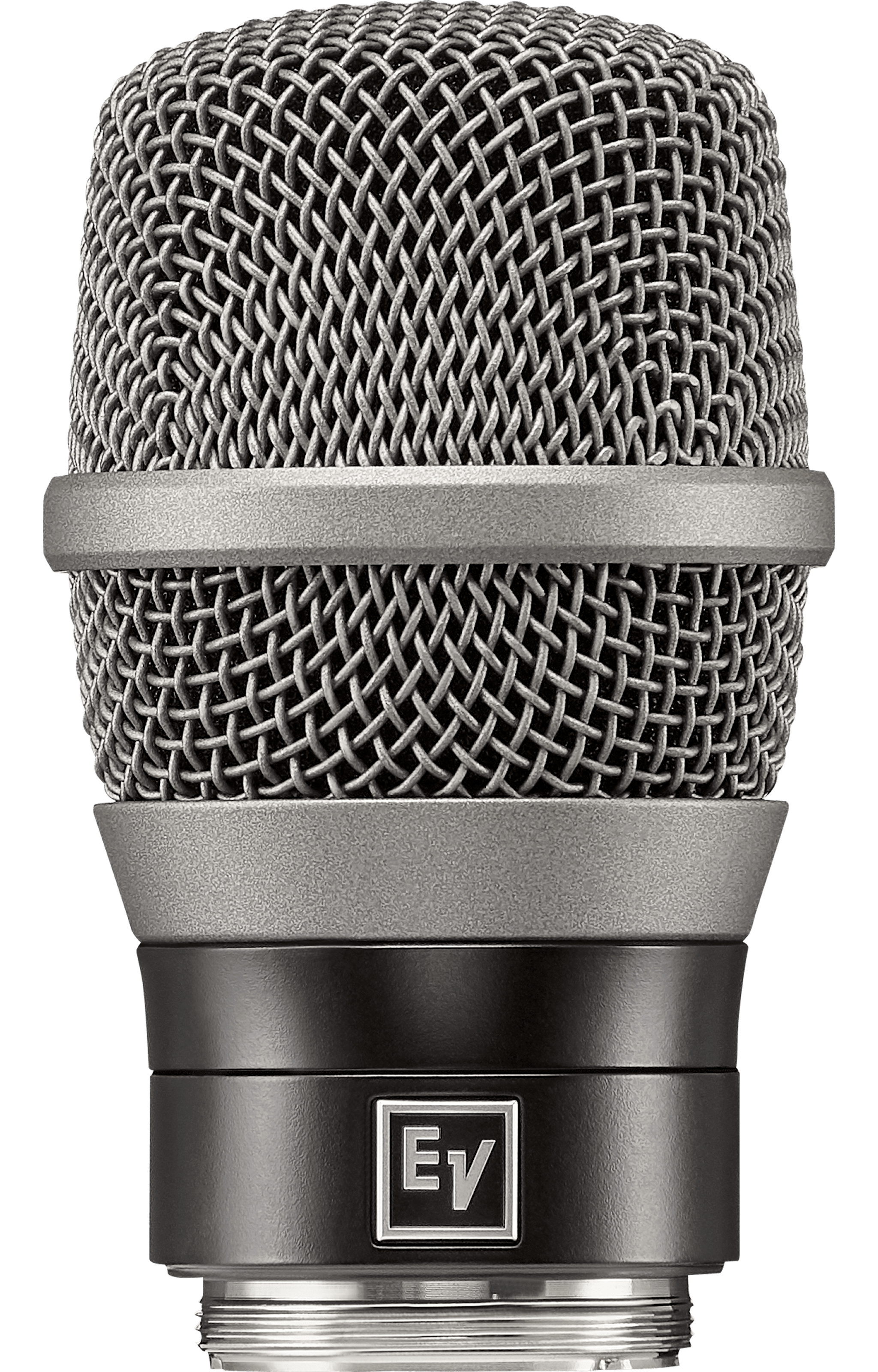

RE520 Condenser supercardioid vocal
RE520-RC3
CONDENSER CLARITY. TIGHTER FOCUS.
A supercardioid condenser vocal head for detail and control on a crowded stage.
RE520 Condenser supercardioid vocal
A supercardioid condenser vocal head for detail and control on a crowded stage.
Get the detail and keep the bleed out. The RE520 is a supercardioid condenser vocal head that delivers studio-capsule clarity while tightly rejecting off-axis sound from a busy stage. The signature is detailed and full (warm low end, present midrange, open top) and the supercardioid pattern cleans up the mix by rejecting nearby sources. A multi-stage pop filter handles breath, a switchable 150 Hz high-pass tames rumble. Loud stage, dense band, a lead vocal that has to cut.
Key features
Tighter rejection
Supercardioid pattern keeps nearby sources out of the mix.
Condenser detail
Reveals nuance and clarity with a 40 Hz-20 kHz response.
Headroom to spare
150 dB max SPL and 133 dB dynamic range handle a loud stage.
Clean up the low end
Switchable high-pass attenuates below 150 Hz on demand.
Plosives and rumble handled
Multi-stage pop filter and internal shock mount stay out of the way.
Bring your own transmitter
Threads onto Electro-Voice and many other brands via the common 3-ring, 1.25-inch, 28-pitch coupling.
Features
Get the detail and keep the bleed out. The RE520 is a supercardioid condenser vocal head that delivers studio-capsule clarity while tightly rejecting off-axis sound from a busy stage. The signature is detailed and full — warm low end, present midrange, open top — and the supercardioid pattern cleans up the mix by rejecting nearby sources. A multi-stage pop filter handles breath, a switchable 150 Hz high-pass tames rumble. Loud stage, dense band, a lead vocal that has to cut.
- Tighter rejection — supercardioid pattern keeps nearby sources out of the mix.
- Condenser detail — reveals nuance and clarity with a 40 Hz-20 kHz response.
- Headroom to spare — 150 dB max SPL and 133 dB dynamic range handle a loud stage.
- Clean up the low end — switchable high-pass attenuates below 150 Hz on demand.
- Plosives and rumble handled — multi-stage pop filter and internal shock mount stay out of the way.
Specifications
Acoustic Performance
- Max SPL
139
- Frequency Response
40 Hz-20 kHz (see chart)
- Sensitivity
5.6 mV/Pascal (-45 dBV/Pa)
- Polar Pattern
Supercardioid
- Signal-to-Noise Ratio
72 dB
Transducers & Drivers
- Element Type
Self-biased condenser
