ONE PAIR OF ANTENNAS. EIGHT RECEIVERS.

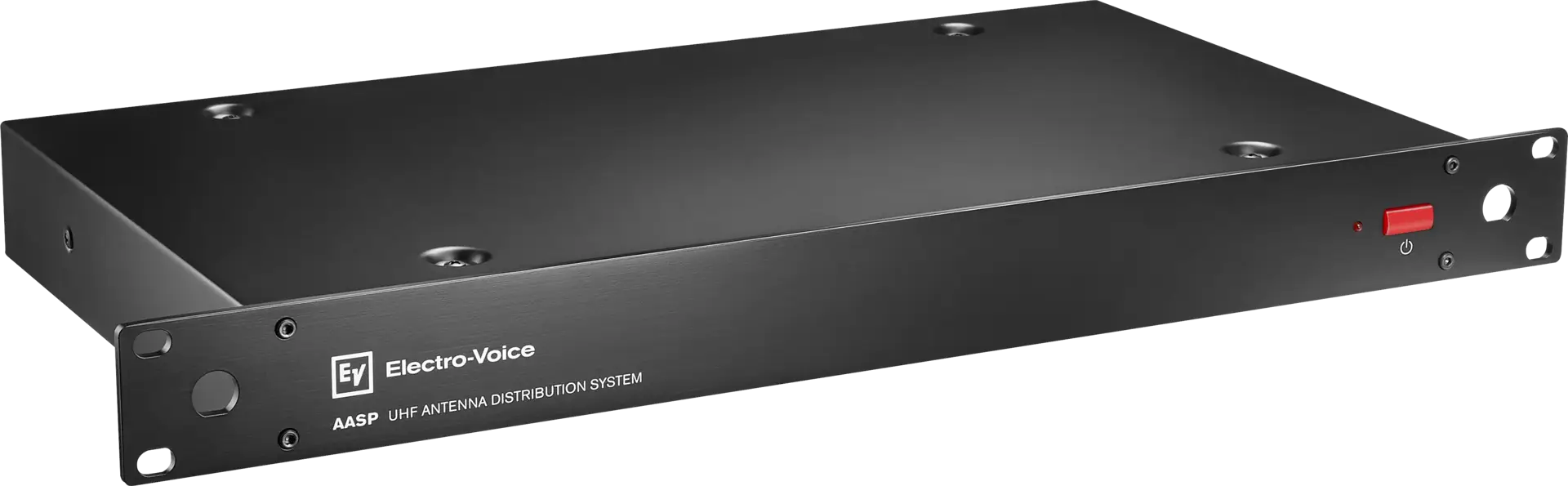

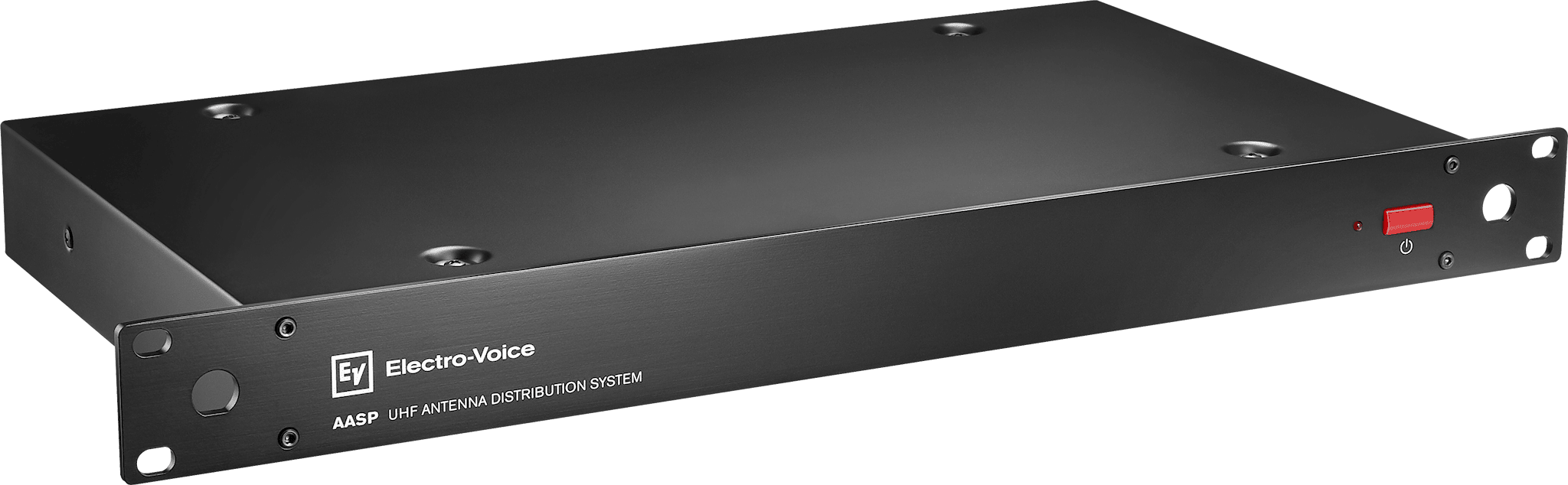

An active 2-in, 8-out antenna splitter that distributes RF and DC across a wireless rack.
RE3-ACC-CL3 Cardioid lavalier mic with
An active 2-in, 8-out antenna splitter that distributes RF and DC across a wireless rack.
Feed the whole rack from one pair of antennas. The RE3-ACC-AASP is an active 2-in x 8-out splitter for multi-channel wireless across 470: 960 MHz, distributing RF and 12V DC to four receivers per side. A selectable booster feed powers active antennas, and a cascade output per antenna lets you chain up to five splitters from one antenna pair without losing any RF outputs. Clean distribution, 25 dB isolation, headroom to grow.
Key features
Drive eight receivers from two antennas
Active 2-in x 8-out distribution across 470: 960 MHz.
Power the rack too
Feeds +12V DC at 1A to four receivers per side.
Run active antennas off it
Selectable 12V booster feed powers active antennas and boosters.
Grow without adding antennas
Cascade up to five AASP units from one antenna pair.
Keep channels clean
25 dB output isolation, 24 dBm third-order intercept, 50-ohm RF path.
Everything in the box
Ten 2-foot BNC cables, four DC leads, the power supply, and an IEC power cable ship with it.
Features
Feed the whole rack from one pair of antennas. The RE3-ACC-AASP is an active 2-in x 8-out splitter for multi-channel wireless across 470–960 MHz, distributing RF and 12V DC to four receivers per side. A selectable booster feed powers active antennas, and a cascade output per antenna lets you chain up to five splitters from one antenna pair without losing any RF outputs. Clean distribution, 25 dB isolation, headroom to grow.
- Drive eight receivers from two antennas — active 2-in x 8-out distribution across 470–960 MHz.
- Power the rack too — feeds +12V DC at 1A to four receivers per side.
- Run active antennas off it — selectable 12V booster feed powers active antennas and boosters.
- Grow without adding antennas — cascade up to five AASP units from one antenna pair.
- Keep channels clean — 25 dB output isolation, 24 dBm third-order intercept, 50-ohm RF path.
Specifications
Power & Amplification
- Operating Voltage / Power
12v DC/5A
Connectivity & I/O
- RF Frequency Band
470 - 960 MHz
Construction & Materials
- Color
Black
Dimensions & Weight
- Length
18.93" (481 mm)
- Net weight
8.3 oz. (235 g)
- Shipping Weight
8.16 lb (3.7 kg)
