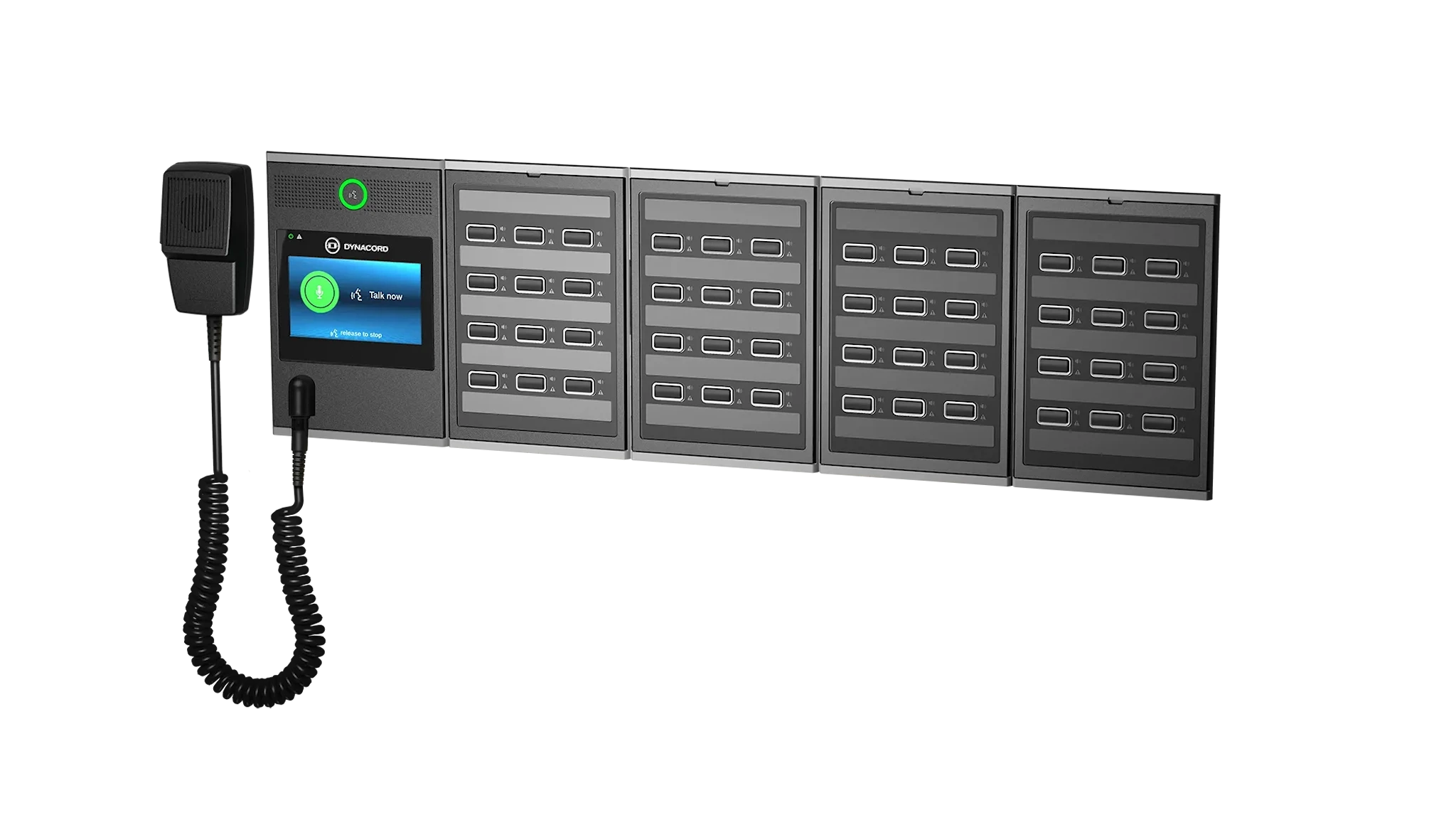

PM9-CSLW
Put a full call station where a desk won't fit. The PM9-CSLW mounts to a wall on a heavy metal base and pairs a 4.3-inch color touchscreen with a detachable omnidirectional fist mic on a coiled cable, push-to-talk or start/stop. Dual OMNEO ports carry PoE, so one connection runs everything and the other stands by. Add up to four extensions, lock it with a PIN, and meet voice-alarm standards. Surface or flush mount, business or evacuation.
Key features
Mount anywhere
wall housing on a heavy metal base, surface or flush.
Mic in hand
detachable omni fist mic on a coiled cable, PTT or start/stop.
Read the system
4.3-inch full-color capacitive touchscreen, 480 x 272.
One cable runs it
dual OMNEO ports with PoE redundancy, either is enough.
Built for alarm
EN 54-16 certified, expandable to four call station extensions.
Lock it with a PIN
a PIN code locks the station against unauthorized use.
Features
This call station for use in PROMATRIX 9000 Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD, providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music.
The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP‑network with Power over Ethernet (PoE) for communication and power supply combined. It can be configured for use as business call station, but also as emergency call station.
The stylish design uses a heavy metal base with a recessed press‑to‑talk button and provides a hand‑held omni‑directional microphone to eliminate the proximity effect which creates a boomy sound when a user speaks close to the microphone. It has a built‑in loudspeaker for call monitoring and a socket to connect a local background music source. It can be easily installed in a wall mount cabinet or flush mounted on a panel.
The 4.3" high‑resolution full‑color capacitive touch screen gives the operator optimum control and feedback at all times.
Every call station must have at least one PM9-CSE call station extension for zone selection, with a maximum of four extensions.
The call station allows for positioning without much effort, because it only requires a connection to an OMNEO IP‑network with Power over Ethernet (PoE) for communication and power supply combined. It can be configured for use as business call station, but also as emergency call station.
The stylish design uses a heavy metal base with a recessed press‑to‑talk button and provides a hand‑held omni‑directional microphone to eliminate the proximity effect which creates a boomy sound when a user speaks close to the microphone. It has a built‑in loudspeaker for call monitoring and a socket to connect a local background music source. It can be easily installed in a wall mount cabinet or flush mounted on a panel.
The 4.3" high‑resolution full‑color capacitive touch screen gives the operator optimum control and feedback at all times.
Every call station must have at least one PM9-CSE call station extension for zone selection, with a maximum of four extensions.
- Wall mount housing with fixed hand‑held microphone and helix cable
- Housing fits surface‑mounting or flush‑mounting
- 4.3" full‑color capacitive touch screen
- Graphical user interface for optimum user guidance and feedback
- Status and fault indicators for voice alarm purposes
- Dual OMNEO IP‑network connection and redundant Power over Ethernet
