MTS-4153-43FWB Loudspeaker high output 40x30 FW blk
MTS-4153-43FWB Loudspeaker high output 40x30 FW blk
A high-output three-way point-source loudspeaker with tight 40° x 30° coverage in a weatherized black enclosure.
Throw it long and keep it clean. The MTS-4153 is a true three-way point source: a Hydra waveform converter couples dual coaxial compression drivers and four woofers to one constant-directivity waveguide for pattern control below 350 Hz. The 40° x 30° pattern reaches deep into stadiums, arenas, and large worship rooms. Fully weatherized for outdoor rigs, it pairs with Dynacord IPX amplification for peak SPL beyond 150 dB.
Key features
Throw the distance
tight 40° x 30° coverage for long-throw stadium and arena fills.
True point source
Hydra waveform converter couples compression drivers and woofers to one waveguide.
Massive headroom
152 dB peak music, 155 dB peak speech on recommended amplification.
Pattern control low
constant-directivity waveguide holds the pattern below 350 Hz.
Built for outdoors
fully weatherized black enclosure, driven by Dynacord IPX amps.
Move serious air
dual coaxial compression drivers and four woofers in one true three-way box.
Features
Throw it long and keep it clean. The MTS-4153 is a true three-way point source: a Hydra waveform converter couples dual coaxial compression drivers and four woofers to one constant-directivity waveguide for pattern control below 350 Hz. The 40° x 30° pattern reaches deep into stadiums, arenas, and large worship rooms. Fully weatherized for outdoor rigs, it pairs with Dynacord IPX amplification for peak SPL beyond 150 dB.
- Throw the distance — tight 40° x 30° coverage for long-throw stadium and arena fills.
- True point source — Hydra waveform converter couples compression drivers and woofers to one waveguide.
- Massive headroom — 152 dB peak music, 155 dB peak speech on recommended amplification.
- Pattern control low — constant-directivity waveguide holds the pattern below 350 Hz.
- Built for outdoors — fully weatherized black enclosure, driven by Dynacord IPX amps.
Specifications
Acoustic Performance
- Max SPL
155
- Frequency Response
55 Hz - 18 kHz
- Frequency Range (-10 dB)
50 Hz - 20 kHz
- Coverage Angle
40 × 30
Connectivity & I/O
- Connectivity
10 AWG (6 mm²) Phoenix/Euroblock input and pass through
Protection & Environmental
- IP Rating
55
Recently visited

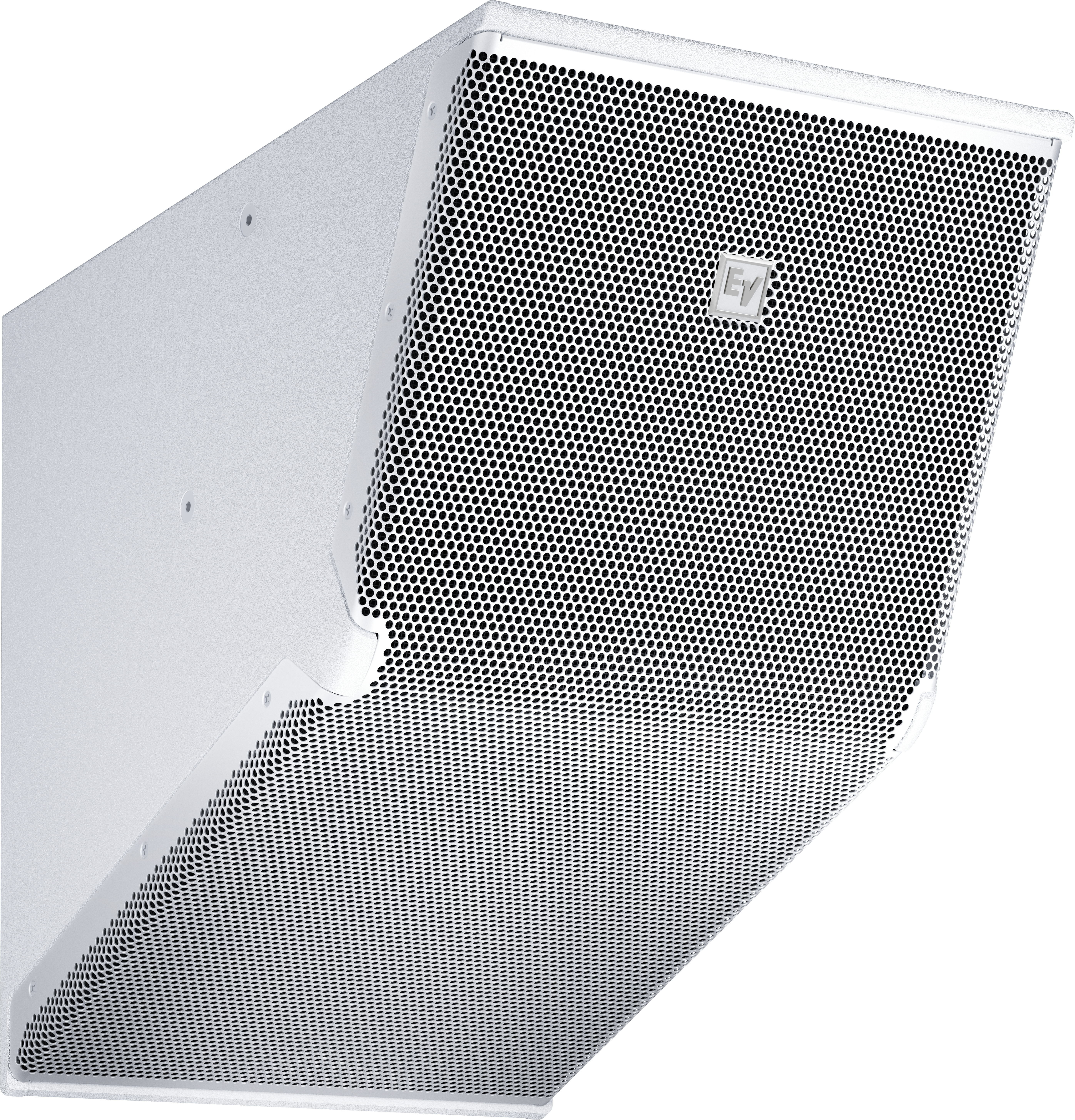

- EVC-1122-VIWTEN54 12 speaker VI XFRM white EN54 Datasheet
