EVC-1082-00 8" speaker 100x100
EVC-1082-00 8" speaker 100x100

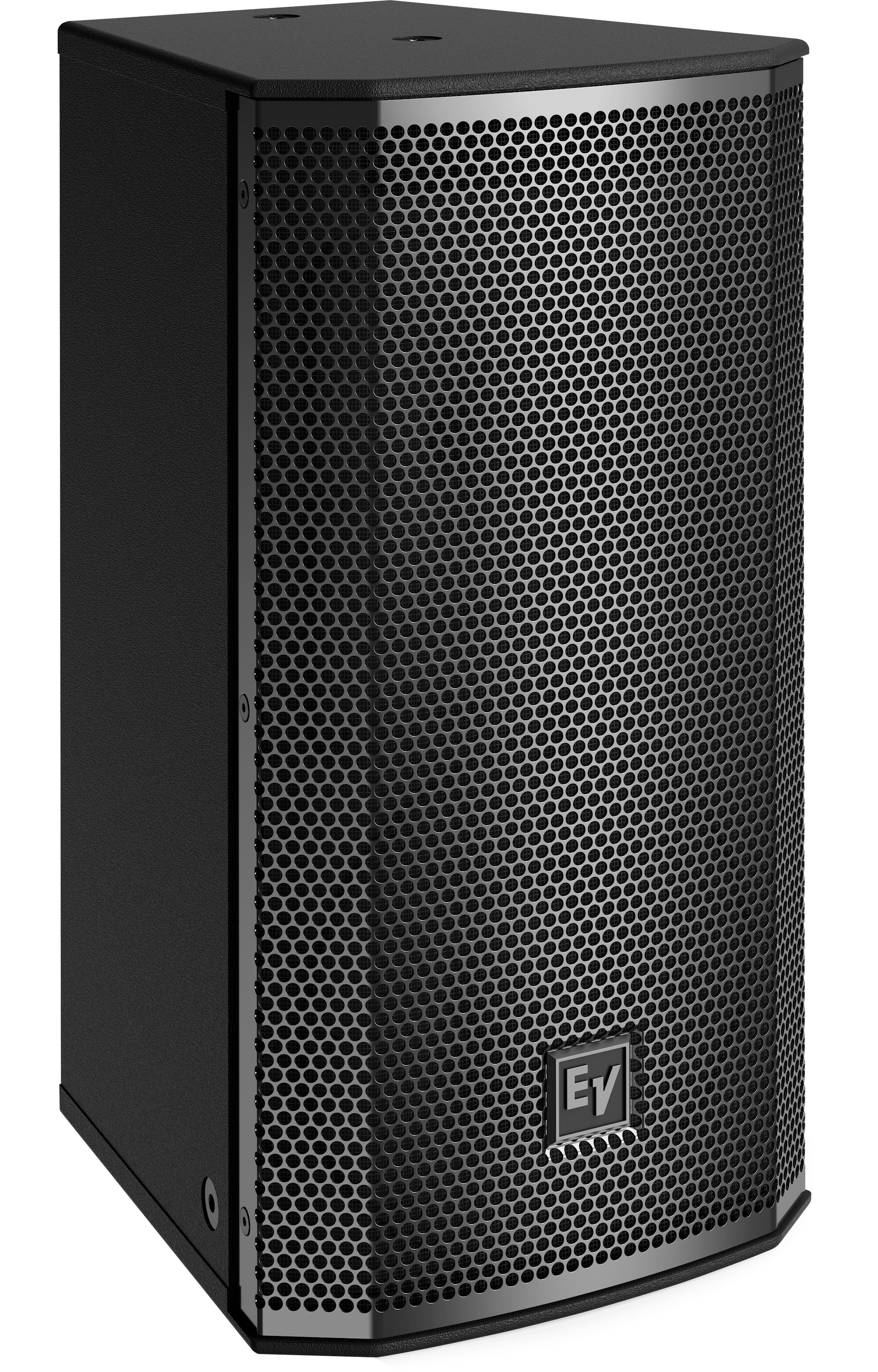

A compact 8-inch two-way install loudspeaker with tighter 90° x 60° coverage, in black.
Features
Aim the energy where the seats are. The EVC-1082-96 narrows coverage to 90° x 60° from a 1.25-inch titanium compression driver on a rotatable waveguide over an 8-inch woofer, with a 24 dB/octave Linkwitz-Riley crossover for clean off-axis response. The 15-mm plywood enclosure wears a durable EVCoat finish and flies on multiple M10 points. Add the TK-150 transformer and patented ASC holds the low end on 70 V/100 V lines. Longer rooms, bars, studios — sound on people, not walls.
- Aim with intent — rotatable 90° x 60° pattern focuses sound on the audience.
- Throw a little farther — tighter directivity carries down longer rooms.
- Clean off-axis — 24 dB/octave Linkwitz-Riley crossover keeps the edges tidy.
- Keep the low end on a line — optional TK-150 transformer engages patented ASC on 70 V/100 V.
- Fly or mount — multiple M10 points plus optional U-bracket and pan/tilt wall mount.
Specifications
Acoustic Performance
- Frequency Response
75 Hz - 21 kHz
- Frequency Range (-10 dB)
55 Hz - 25 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
EVS-2008
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6
